BERA – Landscape Spacer Design System for Gravel stability Fix Pro XL, grey, 1176 x 764 x 64 mm

The BERA Gravel Fix® Pro XL honeycomb panel is an advanced and recyclable gravel stabilisation system, designed for high-quality professional outdoor projects. Thanks to its hexagonal honeycomb structure made of high-strength polypropylene cells, it provides a solid and stable base for applying gravel on pathways, driveways, car parks and terraces.

The Pro XL variant is delivered folded (book-fold) — the panel folds in the centre for easy transport and storage, with transport dimensions of 1176 x 764 x 64 mm. When unfolded, the panel covers an area of 1.8 m², offering an optimal balance between ease of handling and installation efficiency. This format is ideal for both residential projects and medium-sized commercial developments.

Technical specifications:

• Material: 100% recycled or pure Polypropylene (recyclable)
• Colour: Grey
• Cell structure: Hexagonal (honeycomb)
• Cell diameter: 42 mm
• Cell wall thickness: 0.8 mm (top) / 1.4 mm (bottom)
• Transport dimensions (folded / book-fold): 1176 x 764 x 64 mm
• Unfolded dimensions: 1528 x 1176 x 32 mm
• Coverage per panel: 1.8 m²
• Weight: 1.53 kg/m²
• Gravel volume required: 50 l/m²
• Gravel weight: ~75 kg/m²
• Compressive strength (empty): 120 t/m² (pure PP) / 95 t/m² (100% recycled PP)
• Compressive strength (filled): 250 – 450 t/m² (depending on gravel type)
• Geotextile membrane: DuPont™ Typar® 68 g/m²
• Water permeability: EN ISO 11058 — 180 l/(m²·s)
• UV stability and frost resistance: Yes
• Certifications: EPD, ISO 9001, 16949 Lloyds, REACH (EC 1907/2006), Cradle to Cradle® Silver
• Production: European Community

Applications:

• Pathways and driveways with stabilised gravel
• Residential and commercial car parks
• Private and public terraces and gardens
• Green roofs and gravel terraces
• Vehicle traffic areas, including trucks
• Urban landscaping and public green spaces

Key advantages:

• Delivered folded (book-fold) — easy to transport and store, unfolds quickly on site
• Fully permeable surface — rainwater infiltrates immediately into the ground, the surface remains dry
• High load-bearing capacity for pedestrians and vehicles — including trucks, bicycles, motorcycles and wheelchairs
• Terrace furniture and steps — remain firmly in place without sinking into the gravel
• Integrated DuPont™ Typar® geotextile membrane — reduces weed growth and ensures maximum permeability
• Maintenance-free — no ruts or potholes form over time
• Fast and easy installation — no special tools required, panels connect easily after unfolding
• Can be cut with a standard saw to fit any shape or size
• Eco-friendly product — made from recycled materials, certified Cradle to Cradle® Silver

Compatible filling materials:

The BERA Gravel Fix® Pro XL honeycomb panel is compatible with a variety of granular materials: decorative gravel, crushed stone, sand, shells, mulch or soil. The 42 mm cell diameter allows the use of granules up to 32 mm in size.

Installation:

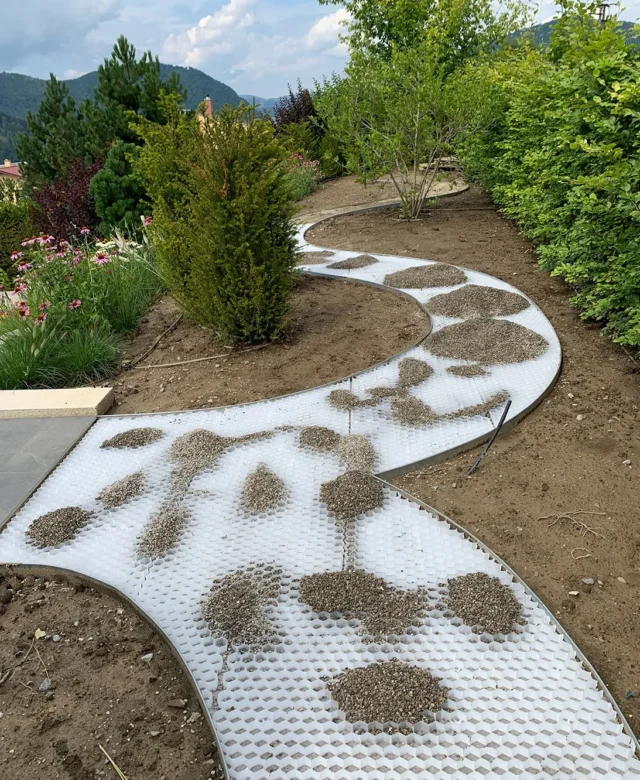

Installation is simple and fast: unfold the panel from its folded (book-fold) position, join the panels together and secure them using the integrated connector system or with plastic pegs in the specially provided holes. No special tools are required. If needed, the panel can be cut with a standard saw to fit any surface shape. The use of BERA T-Edge Pro or L-Edge Pro border edging is recommended to prevent panel movement at the edges.

Quantity calculation:

One Pro XL panel covers 1.8 m² when unfolded. To calculate the number of panels required, divide the total surface area (in m²) by 1.8. Example: for 18 m² you will need 10 Pro XL panels.

Discover the full range of BERA stabilisation systems and accessories at piatraonline.ro — complete solutions for durable and aesthetic outdoor projects.
